Milestone 1
Executive Summary
Many industry malware detection tools (used in the workplace or for personal use) are either platform specific, intrusive, or high overhead and need to be maintained. Redns is a malware detection tool which plans to overcome these problems in a small, easy to deploy package.
Goals and Objectives
Redns plans to combat the problems outined in the executive summary in the following ways:
- Easy to impliment If its run as the main DNS server it can detect malicious content without having to run any client-side software. This also means it can be deployed in a large corperate environment just as easily as on a personal computer.
- Low overhead. Redns is written in golang and the entire system can be deployed on most architectures in under 10MB. The tool is also statically compiled meaning no extensive dependencies, it is shipped with everything it needs to run.
- Non intrusive. Being non-client side, it does not run in the background therefore is no-overhead on your workstations. Redns has no annoying popops and will only redirect traffic if told to do so.
Redns is and always will remain open-source. After version 1.0 is released we
encourage critique and peer reviews. If you have any questions or feedback feel
free to contact us or better yet submit a PR.
Redns will continue to be fast and reliable, DNS requests passing through the
tool add a negligible amount of time to the request and its probably faster than
your current firewall implimented DNS server. Redns is tested for errors with
unit tests and function test being constantly ran against the code over on our
projects travis page.
Project Risks
| Risk name | Impact | Likelihood | Description |
|---|---|---|---|
| Domain list availability (16) | 8 | 2 | If open doimain lists are hard to get a hold of proving malicious intent becomes difficult |
| Alerting system (9) | 3 | 3 | Finding a way to alert users could take a fair amount of time with one developer |
| Procrastination (12) | 3 | 4 | I always pull through with enough coffee |
| Unknown DNS issues (12) | 3 | 4 | If clients try an unsupported DNS call it will not resolve but instead return a DNS SERVFAIL and timeout if not handled correctly. I dont know what I dont know |
| Unit testing (8) | 2 | 4 | Its difficut to unit test DNS calls in go, feature testing is much easier. It could have unknown negative side effects |
Application Requirements
User Stories
- As an administrator, I want to add new blacklisted domains to keep my clients safe.
- As an end-user, I want non-intrusive malware indicators so I am not distracted.
- As an administrator, I want to be alerted of malicious intent to keep my users safe.
- As an administrator, I want to follow traffic on a per-ip basis to track down malicious software swiftly.
- As an organizational manager, I want an indicator of compromise(IOC) deployed rapidly to cut down on
man-hour costs.
Acceptance Criteria
- Administrator can add blacklisted domain databases via supplied data input tool
- Administrator can add a single blacklisted domain via API
- Administrator can add a batch of blacklisted domain via API
- Administrator will be alerted of an attempted malicious domain via Email
- Administrator will be able to follow traffic on a per-ip basis via HTTP API
- Administrator will be able to set up redns swiftly via sane default configs
- End-user will be able to browse freely without interruptions/client pop-ups
- Organization manager will be able to obtain redns free of cost

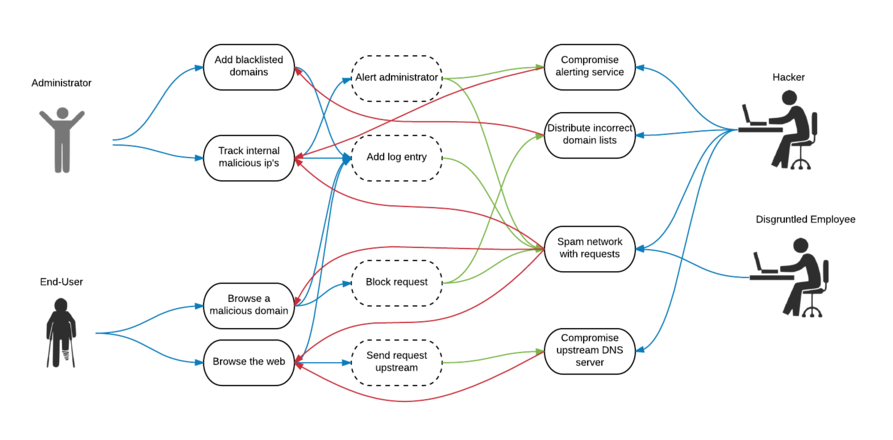

Use Cases
Used Technologies
| Resource | Dr. Hale needed? | Investigating Team member | Description |
|---|---|---|---|
| Golang | No | Matthew | Go is an open source programming language that makes it easy to build simple, reliable, and efficient software. |
| Redis | No | Matthew | Redis is an open source (BSD licensed), in-memory data structure store, used as a database, cache and message broker. |
| Golang DNS library | No | Matthew | miekg/dns is an open source DNS library for golang used by many leaders in the field |
| Travis CI | No | Matthew | Travis is a CI tool used by many industry leaders to test and release code. It is free to use for open-source projects. |
We have also set up a trello board for sprint based activity tracking/planning.
